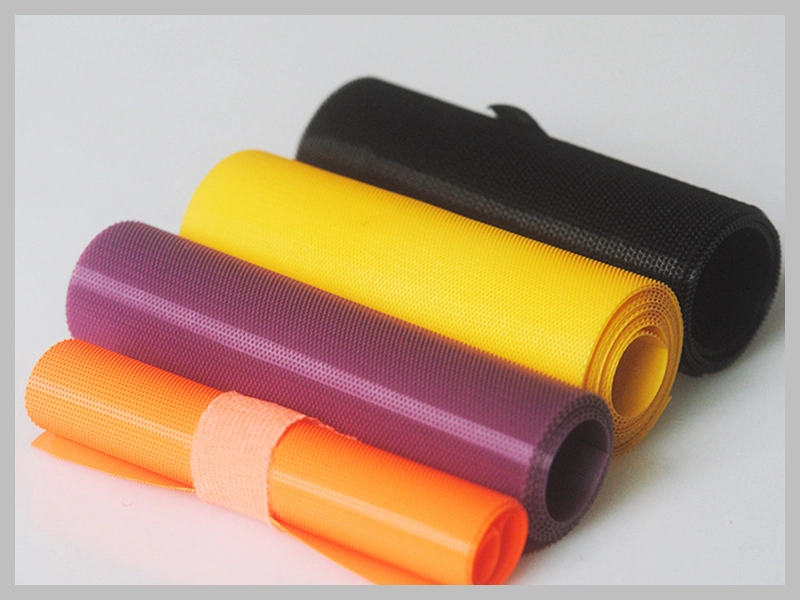

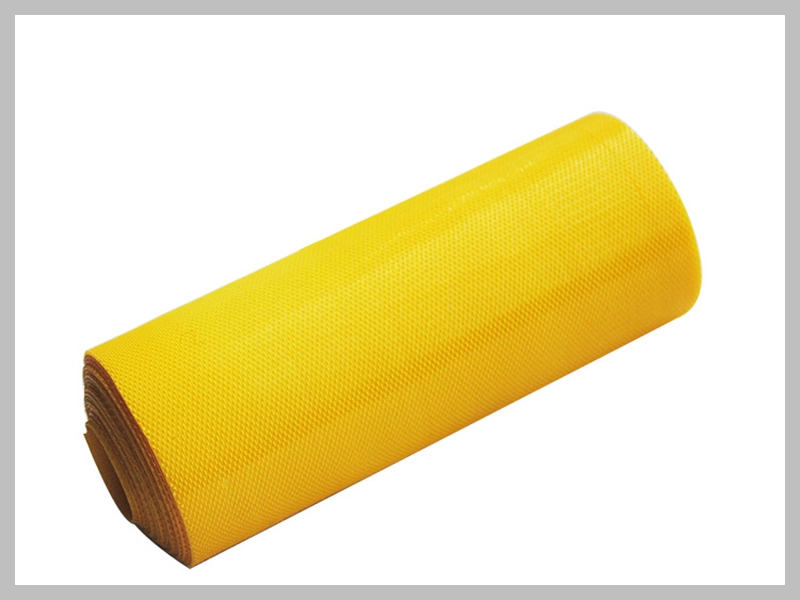

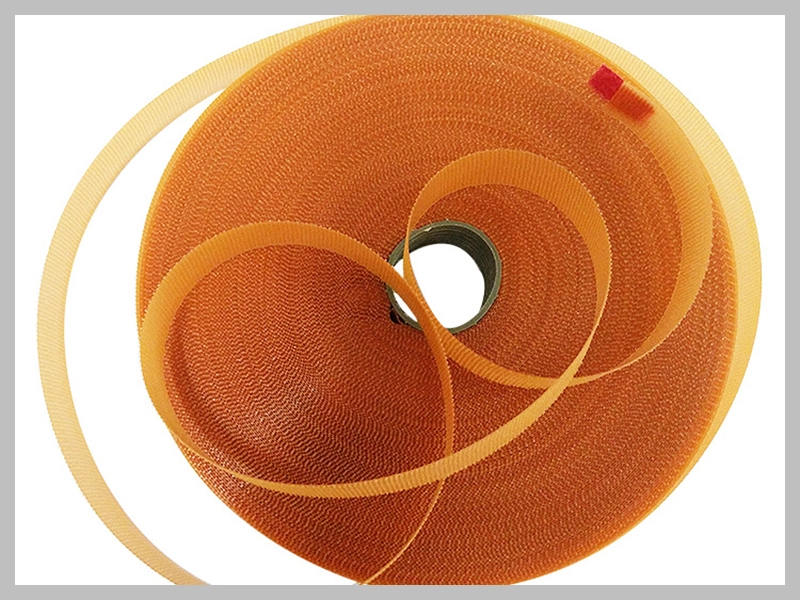

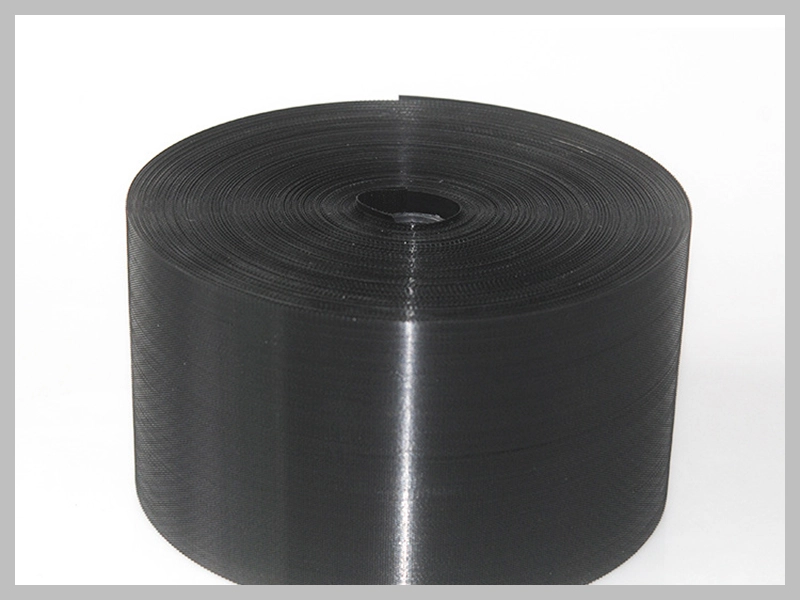

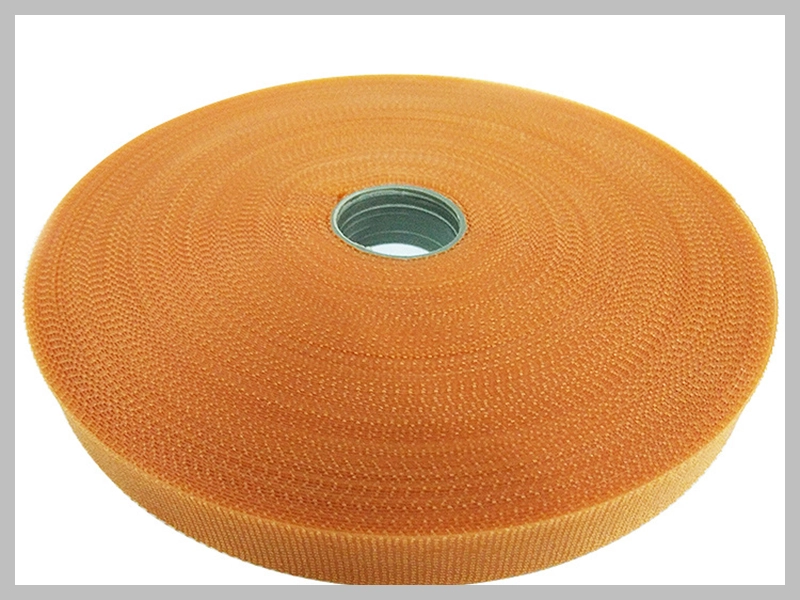

Thin Double-Sided Injection Molding Hook
Thin Double-Sided Injection Molding Hook Thumb Thin Double-Sided Injection Molding Hook Thumb Thin Double-Sided Injection Molding Hook Thumb Thin Double-Sided Injection Molding Hook Thumb Thin Double-Sided Injection Molding Hook Thumb

Thin Double-Sided Injection Molding Hook

Reference price US$0.05 – 1.20 / m FOB Xiamen · varies with width and order quantity
  • Model No: vc-387

  • Specifications

    Width : 10-150 mm, slit to order (+/-0.5 mm)
    Material : 100% Nylon
    Colour : Natural / made to order
    Minimum order : 500 m (stock colour) / 3,000 m (dyed)
    Sample : 7 days, cut to width
    Production : 2-3 weeks after sample approval
    Certification : SGS / Oeko-Tex / ISO 9001; REACH and RoHS declarations
    Packing : Polybag, export carton, palletised for LCL
    Port : EXW Xiamen, FOB or CIF
    Payment : T/T 30% deposit, balance against copy of B/L
    Slitting tolerance : ±0.5 mm
  • Inquiry now

Detailed description

This is a woven hook and loop construction supplied to order. What follows is the part that decides whether the roll works on your line: the yarn, the width tolerance, the put-up and the paperwork that travels with the container.

What the buyer is choosing

Two things decide whether a roll suits an automated line: the width tolerance at the core and the outside of the roll, and whether the put-up is splice-free. Ask for both in writing. A supplier who quotes a tolerance only for the finished carton is quoting the wrong measurement.

The material question

The fibre is nylon (polyamide). It takes dye deeply, which is why the colour range is wide and why the colour holds through washing at 40 degrees. Its weakness is moisture regain: a nylon roll absorbs water in transit, measures wide on arrival and settles back over about a week, so allow for it in incoming inspection rather than rejecting the lot.

How it is quoted

Payment is 30 percent deposit with the balance against a copy of the bill of lading. Mixed widths on one purchase order are quoted as separate lines with a shared lead time, which is usually cheaper than splitting the order.

What ships with the goods

Packing is poly bag plus export carton, palletised for LCL. For humid destinations we add a desiccant and a moisture barrier, because a roll that takes up water in transit will measure wide on arrival.

Checking it on arrival

Weigh a metre of the roll. Weight per metre is the fastest proxy for yarn density, and it is the number that shifts quietly when a supplier tries to hold a price through a yarn increase.

Ask for a sample at your width; it ships in seven days and it settles the substrate, colour and hand questions faster than any specification sheet.
